TOYAN FS-S100AT 4 Stroke Nitro General Engine

Name: TOYAN FS-S100AT 4 Stroke Nitro General Engine Model Souvenir Version
SKU: 1795
Availability: InStock

Unleash high-performance engineering with the TOYAN FS-S100AT 4 Stroke Nitro General Engine kit. Perfect for enthusiasts, this hands-on project offers a detailed and functional model-building experience with a powerful 4-stroke nitro engine.”

Please note :

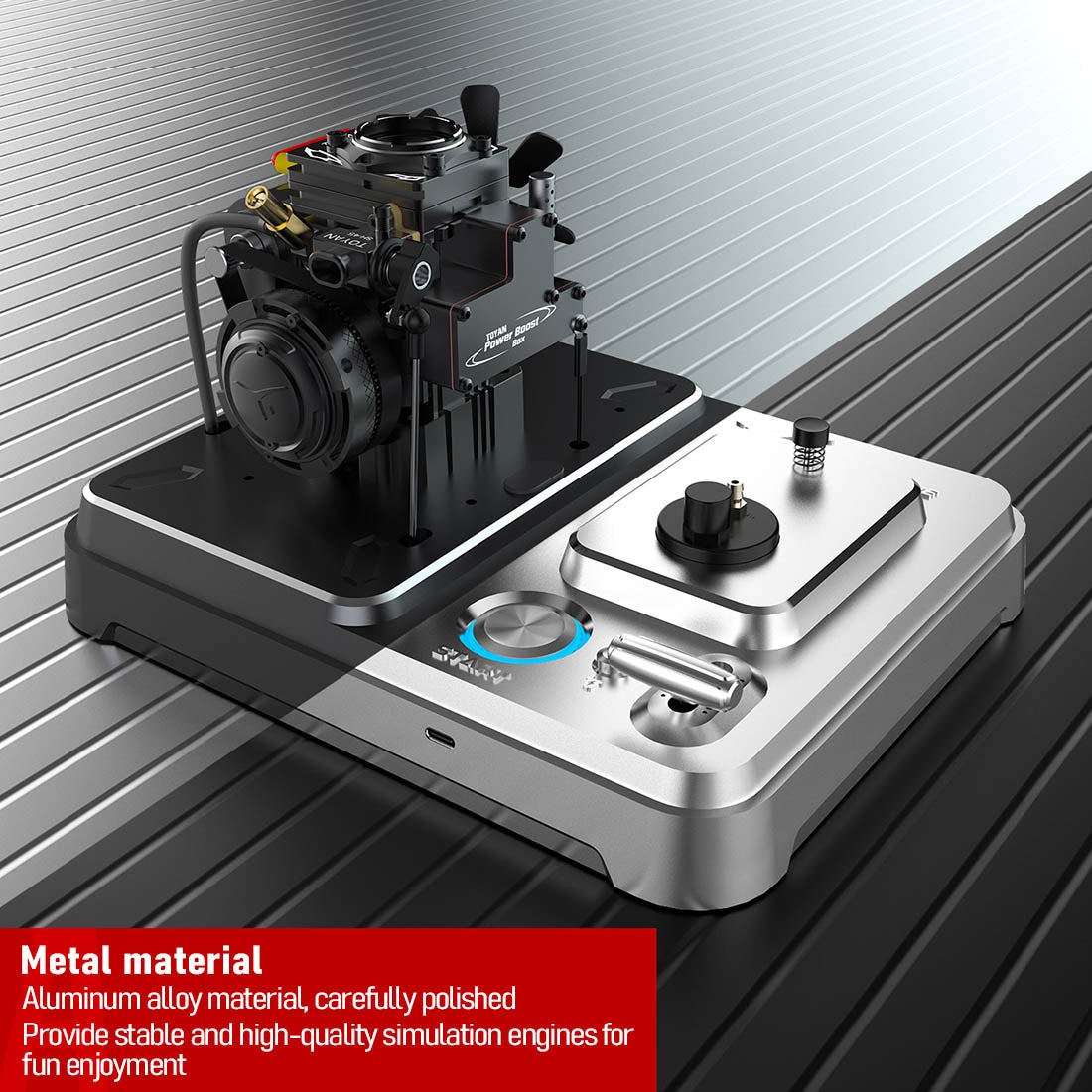

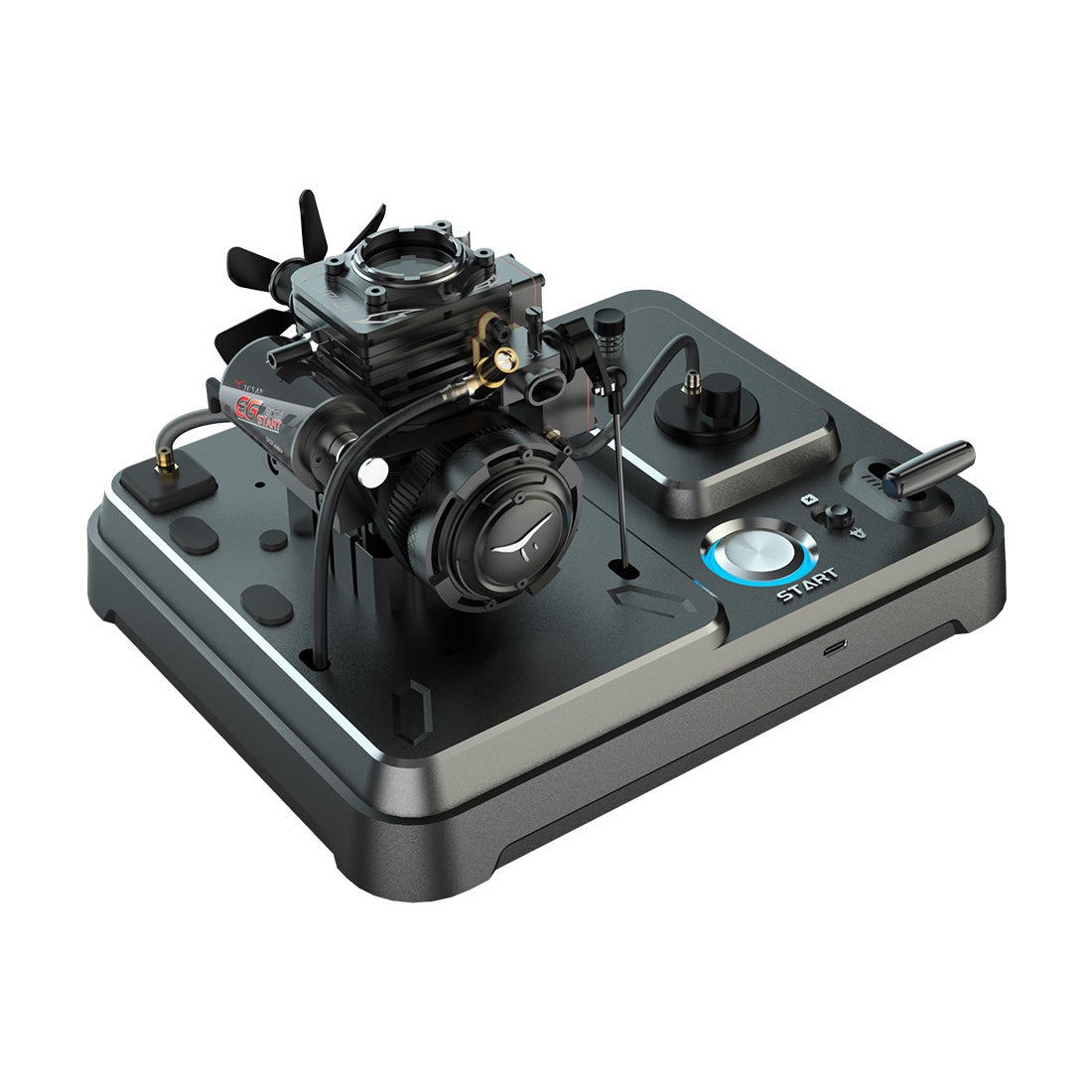

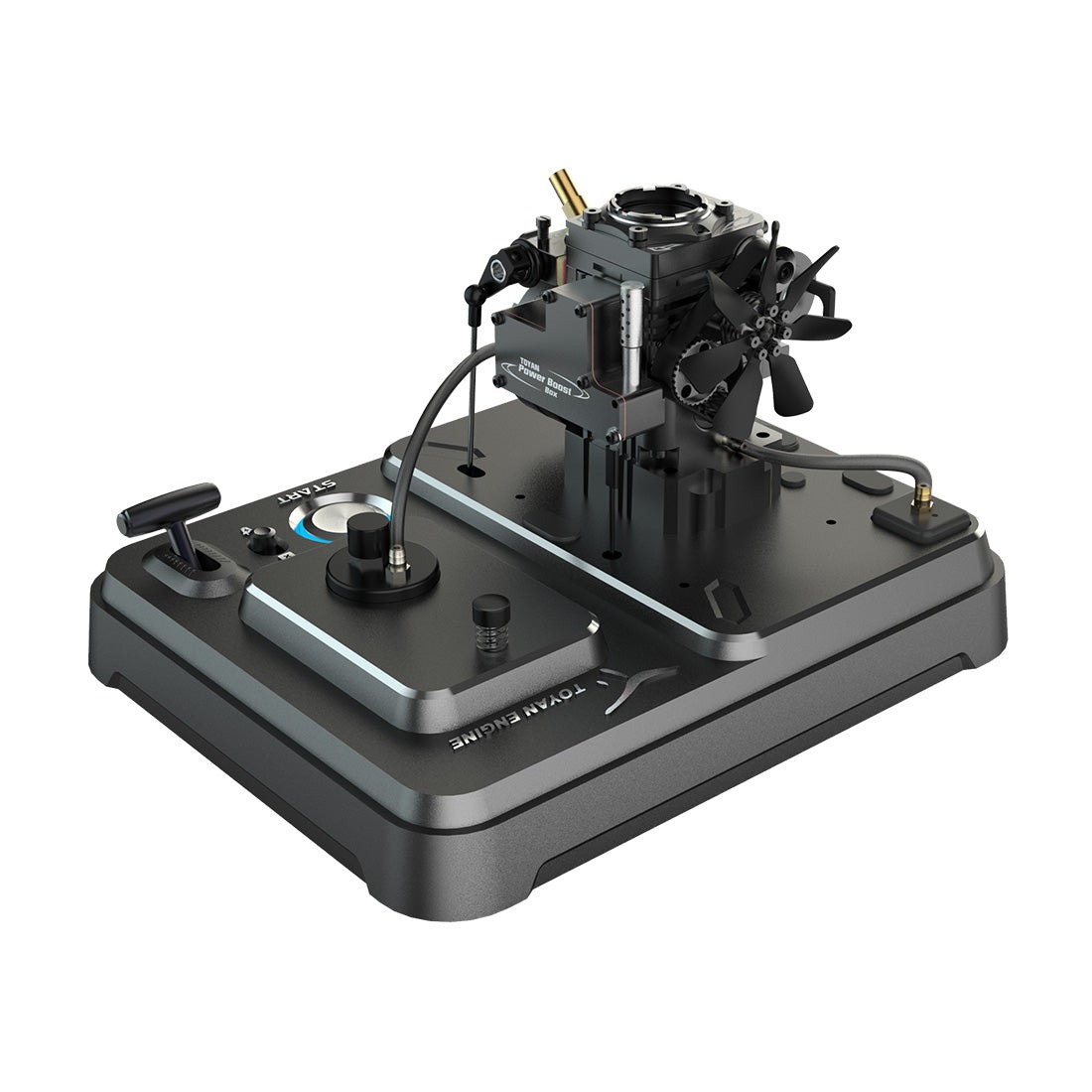

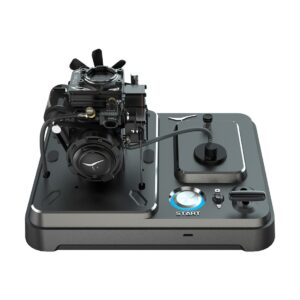

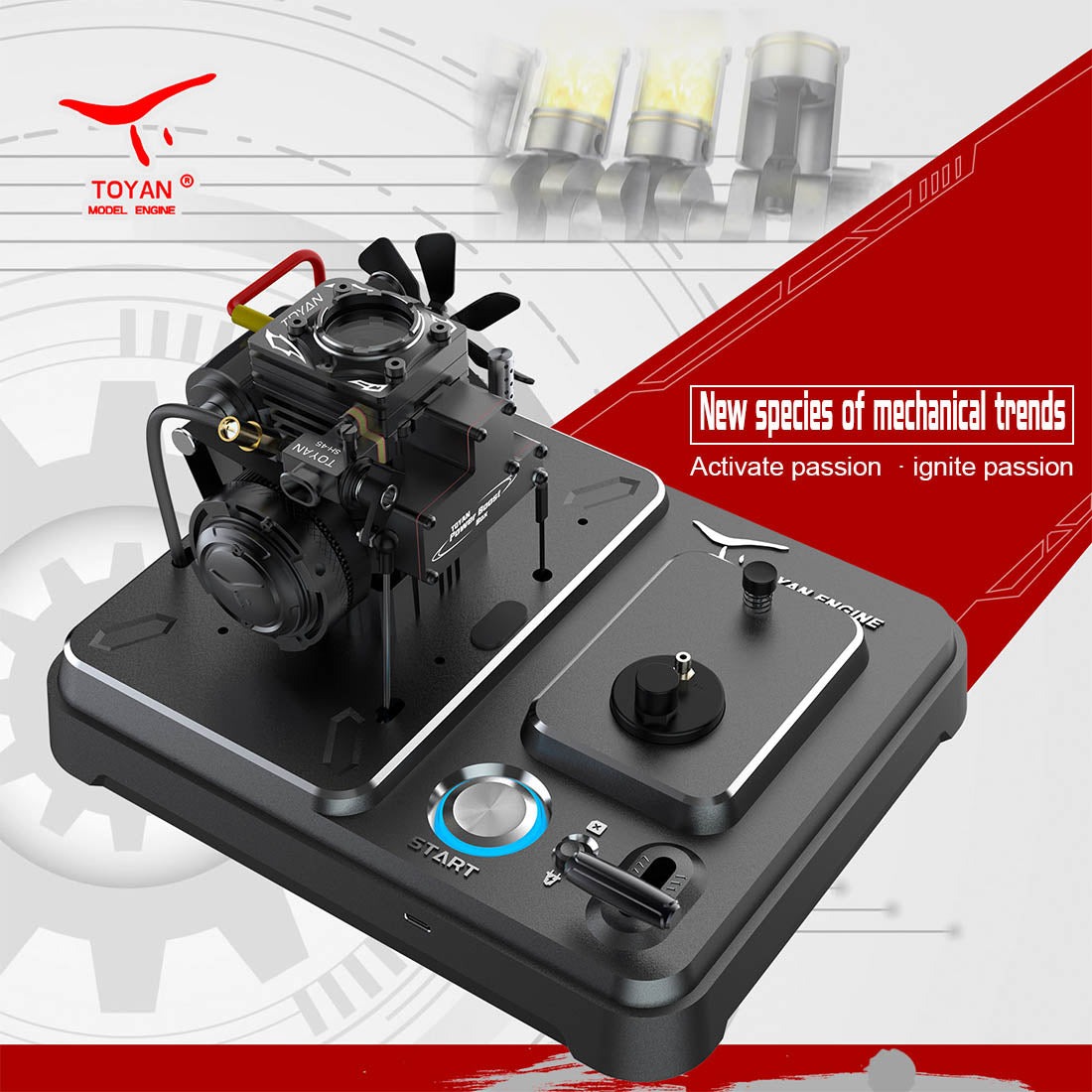

1. Glad to tell you that Toyan made an updated version of the FS-S100AT see-through engine. That is TOYAN FS-S100AT1D-XP, which includes an engine, starter kit, one-key-start metal base, and a battery. Before, if you wanted to buy the full set of the FS-S100AT engine, you needed to pay almost USD 600 to buy the whole set like the engine, a set of starter kits, a metal base, and a battery. But now, pay as little as USD $249.99 to get what you want during Stirlingkit pre-order sale time.
2. Price: The first 100 orders can enjoy Automative 100$ off, which is $ 249.99 USD.
Later The price will rise to $299.99usd.
3. Please note that these two versions are all finished version instead of the KIT version.

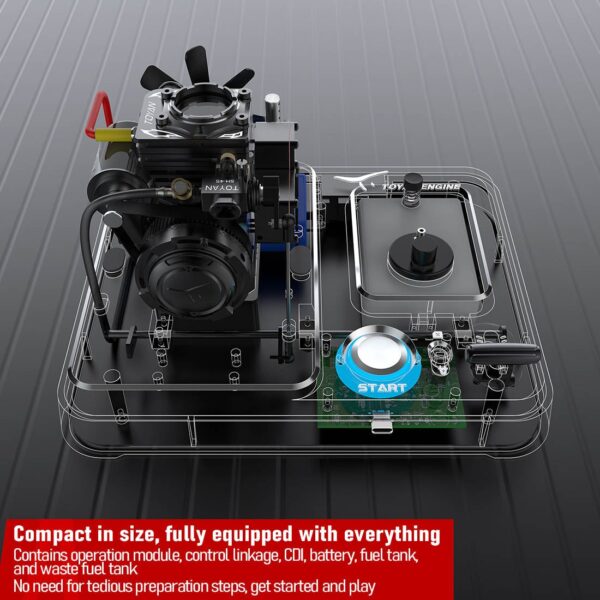

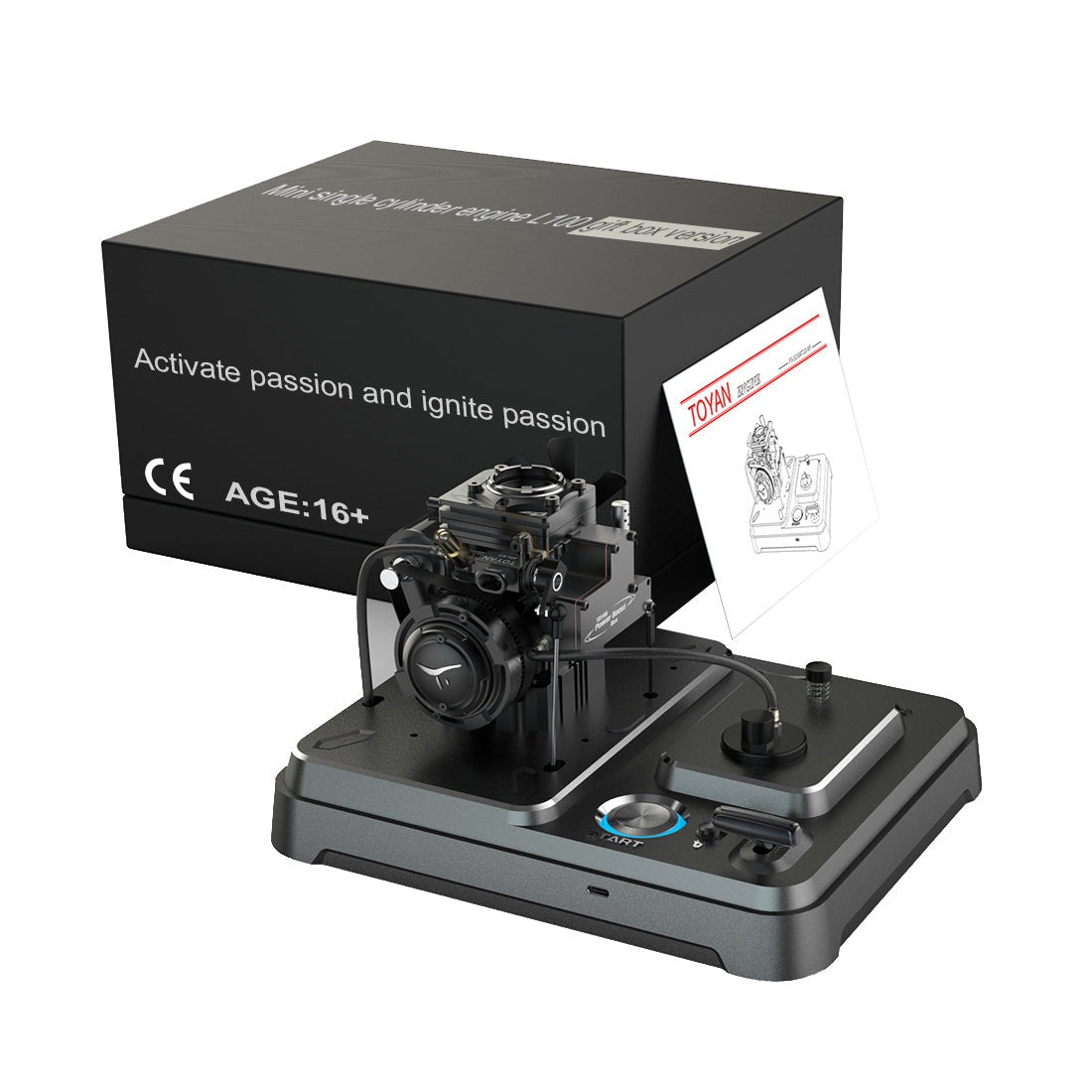

4. Please note that you don’t need to buy any starter kit or metal base for the new TOYAN FS-S100AT1D-XP because they are included in the parcel.
5. this engine has last 14pcs left. hurry up before it’s sold out.

What’s the Difference Between TOYAN FS-S100AT 1D-XP and TOYAN FS-S100AT?

Feature/Specification	TOYAN FS-S100AT1D-XP	TOYAN FS-S100AT
Color	Black and Silver	Black and Golden
Design and Features
– Internal Combustion Chamber	Observable	Observable
– Carburetor System	Adjustable	Adjustable
– Ignition Angle Flywheel	Adjustable	Adjustable
– Cooling Fan	High-efficiency	High-efficiency
– Camshaft Design	Mid-camshaft	Center camshaft
– Precision Parts	Yes (high-precision)	Yes (high-precision)
Usage Instructions	QR Code Instructions	QR Code Instructions
– Ignition	CDI	CDI
– Fuel	Gasoline/Methanol	Gasoline/Methanol
– Fuel Recommendation	Methanol recommended for more sensitive and convenient starting	Methanol recommended for more sensitive and convenient starting
Applications
– RC Models	1:10, 1:12, 1:14	1:10, 1:12, 1:14
– Scientific Experiments	Yes	Yes
Age Recommendation	16+	14+

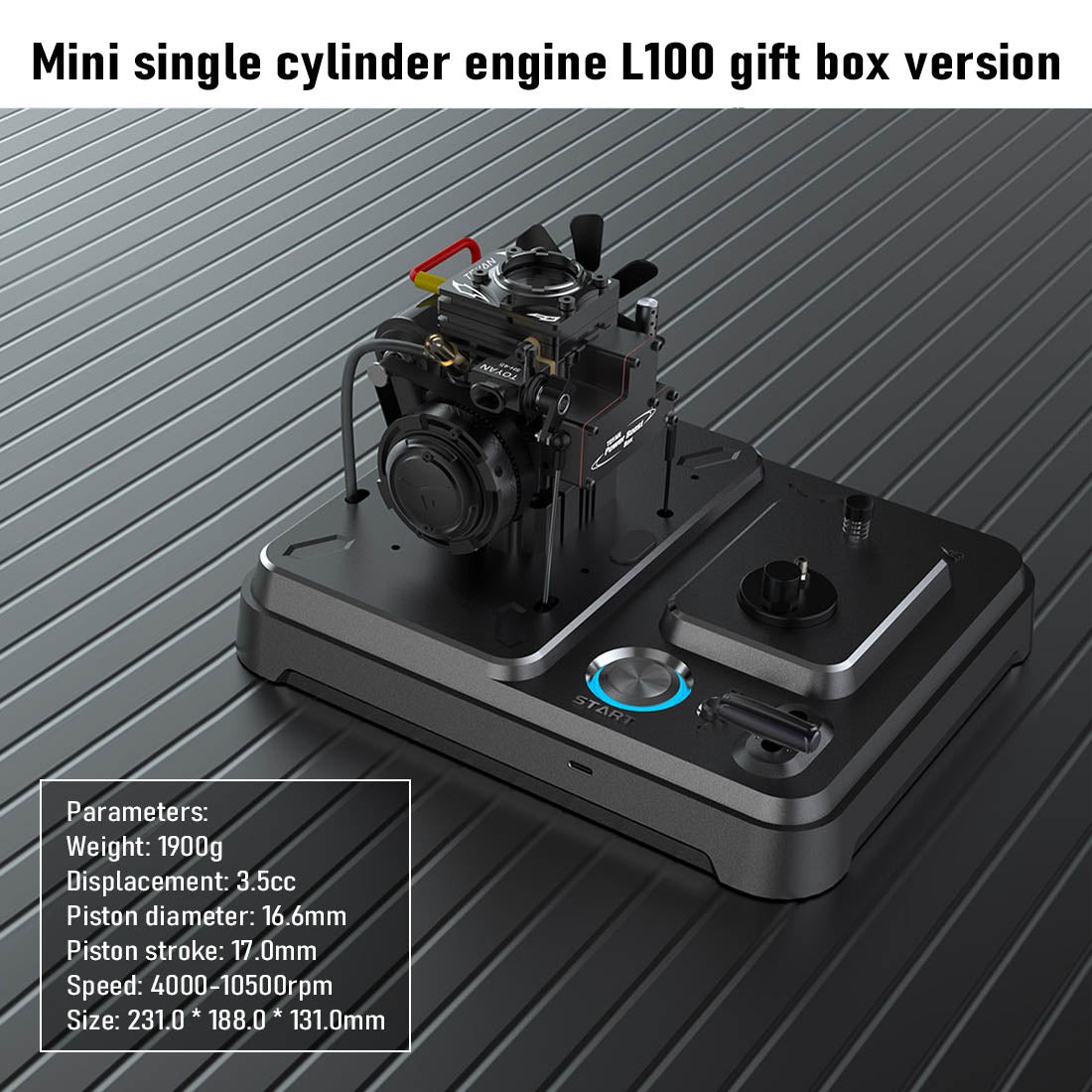

Specifications
– Displacement	3.5cc	3.5cc
– Piston Diameter	16.62mm	16.62mm
– Speed Range	4000-10500 RPM	3200-8500 RPM
– Power	0.82PS	0.82PS
Weight
– Product	1900g	410g
– Package	2500g	1066g

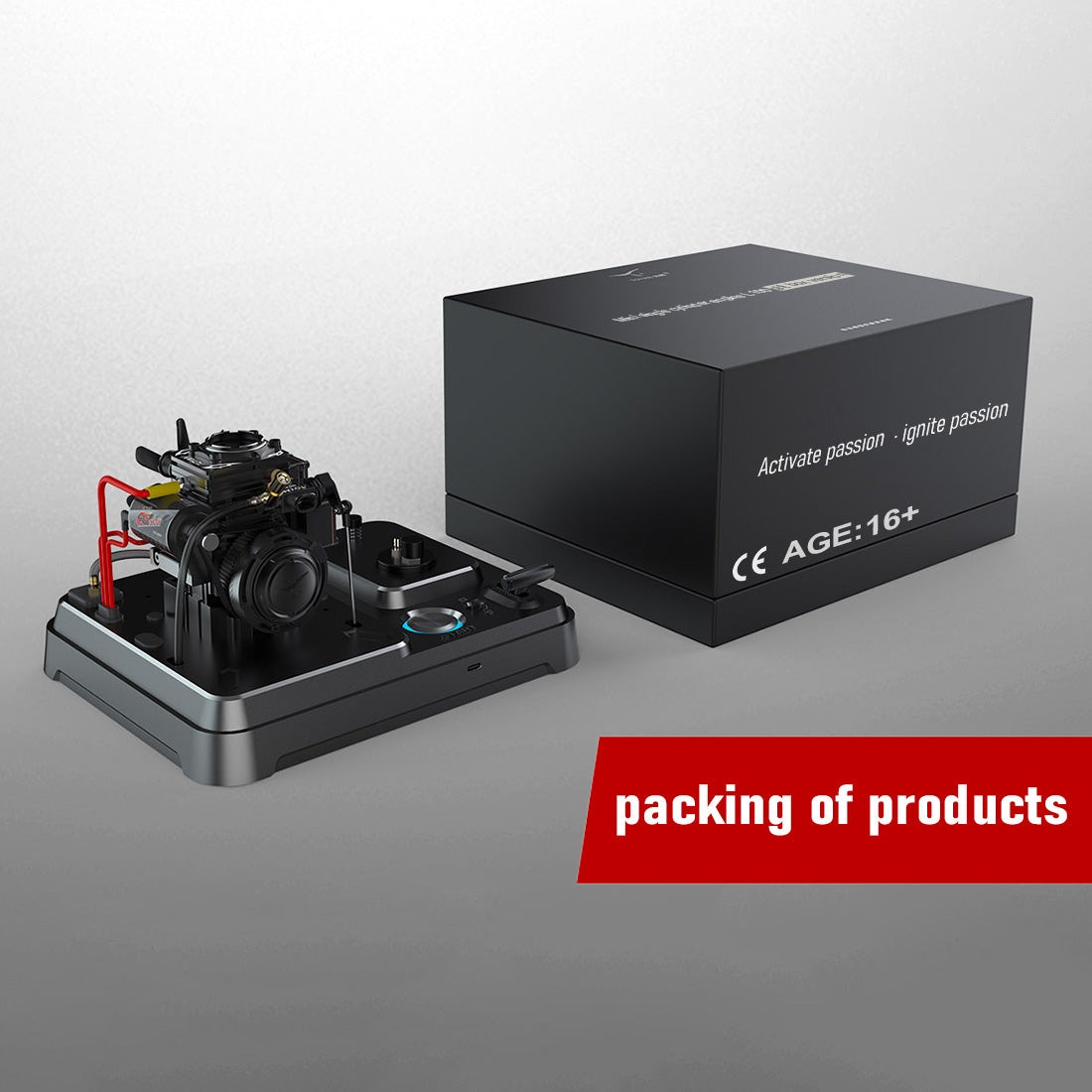

Packaging	Gift Box	Graphic Carton
Package Content
– Engine	Yes (1)	Yes (1)
– Base	Free (1)	Not included. Costs$95.99
– Starter Kit	Free (1)	Not included. Costs $119.9
– Gift Box	Yes (1)	Yes (1)
– Battery	Free (1)	Not included. Costs $15

Which One is better, FS-S100AT 1D-XP or FS-S100AT?

Aspect	TOYAN FS-S100AT 1D-XP	TOYAN FS-S100AT
Disadvantages
Cost-saving Measures	Replaced parts with lower-cost configurations, molded base for cost reduction	Original version uses higher-cost configuration
Original Intended Use	Initially designed for business gifts, may require disassembly for RC car modification	High threshold for use, requires additional accessories and independent setup
Advantages
Cost-effectiveness	Engine, base, and accessories packaged at the same price as engine alone, offering more value	More flexible use, no need to purchase additional accessories if already own base and ignition accessories
Gift Presentation	Packaged in a gift box, suitable for collection or presentation	Packaged in a gift box

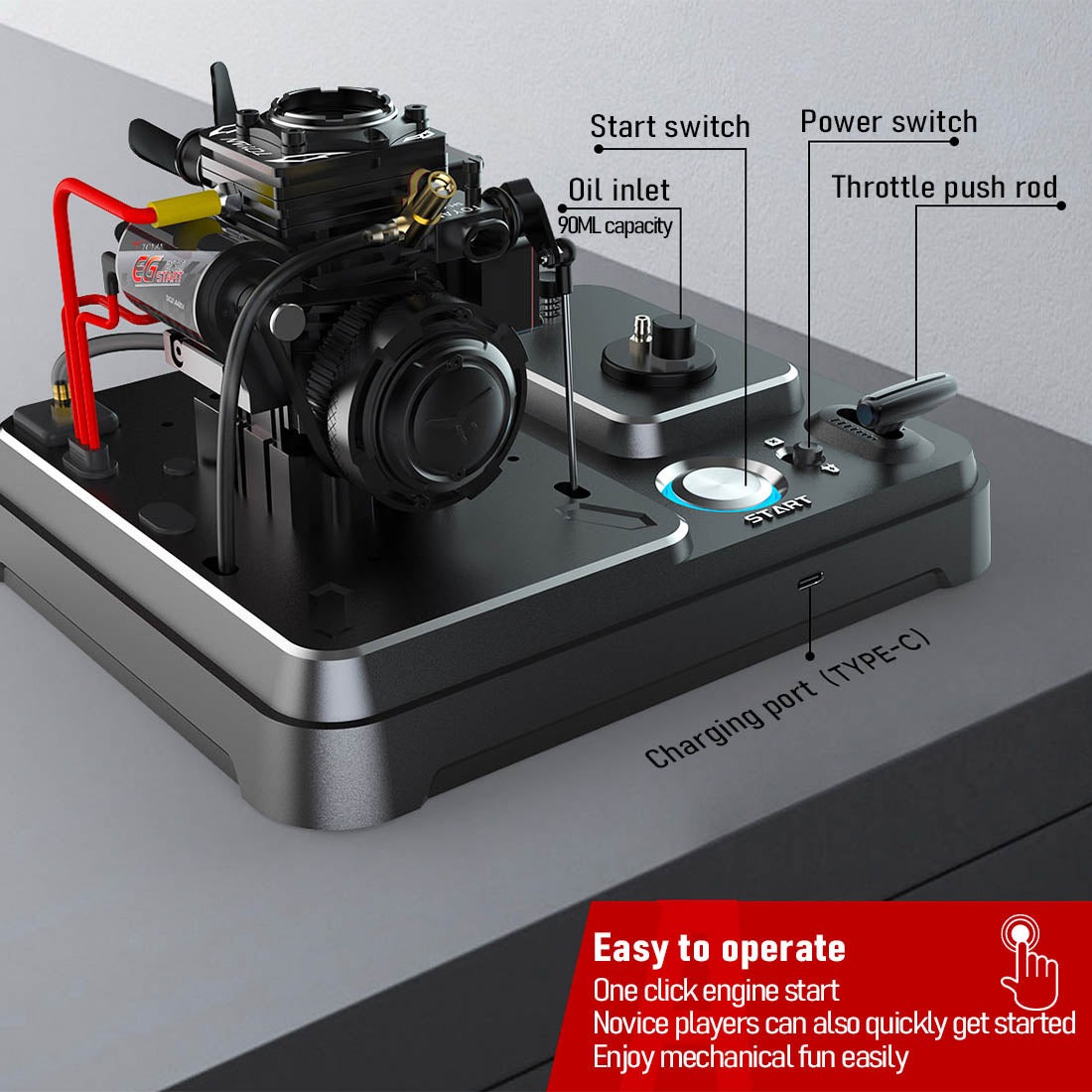

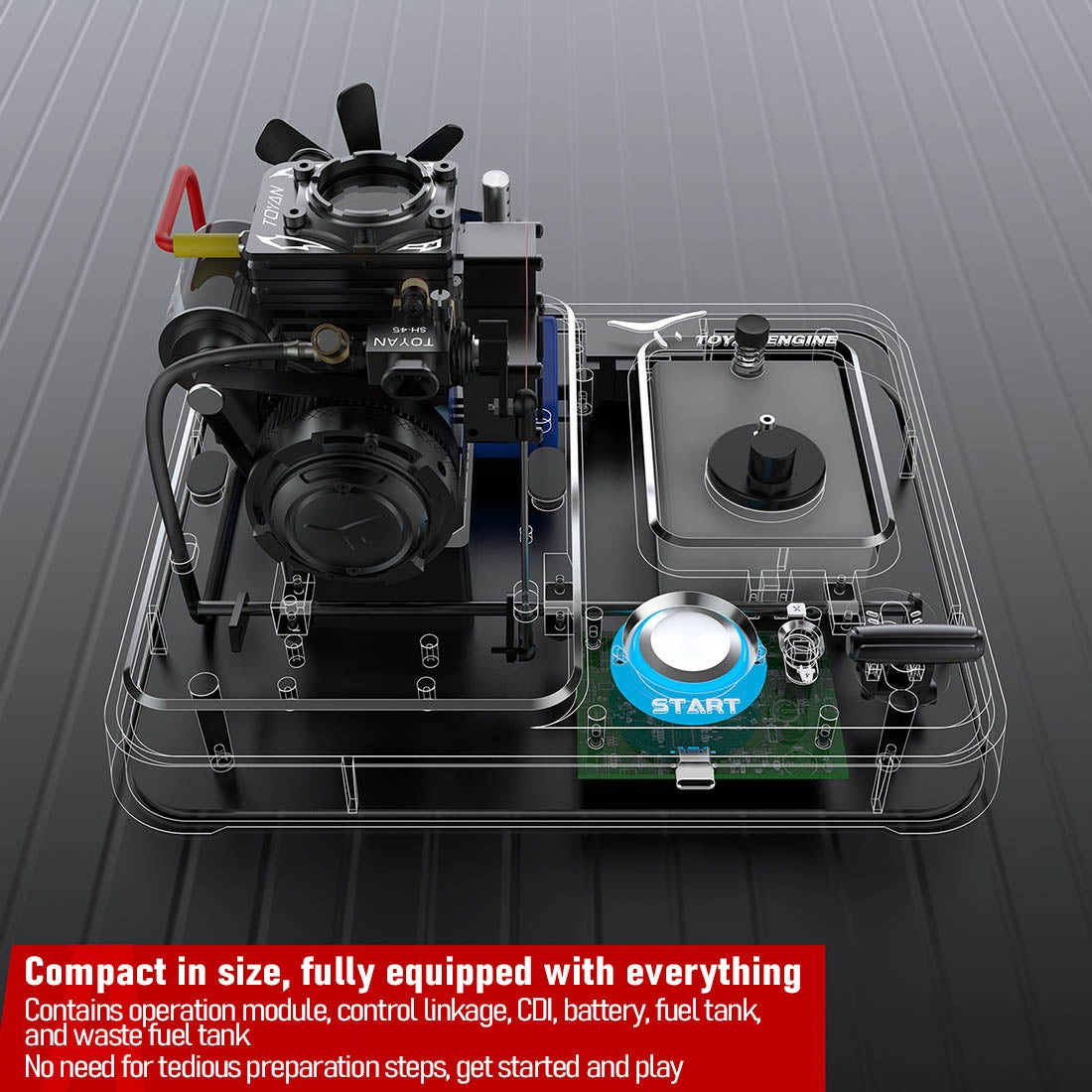

Design Features	Fixed connecting cable for neater appearance, pre-debugged parts for convenient one-click start	N/A
User Playability	Suitable for novices, easy one-click start	More playability, suitable for professional users, enjoyment of independent machine debugging
Flexibility	Limited to installation on RC cars, boats, or desktops	Can be used flexibly and freely without restrictions
Cost Consideration	More cost-effective option	May require additional expenses for separate accessories

Features:

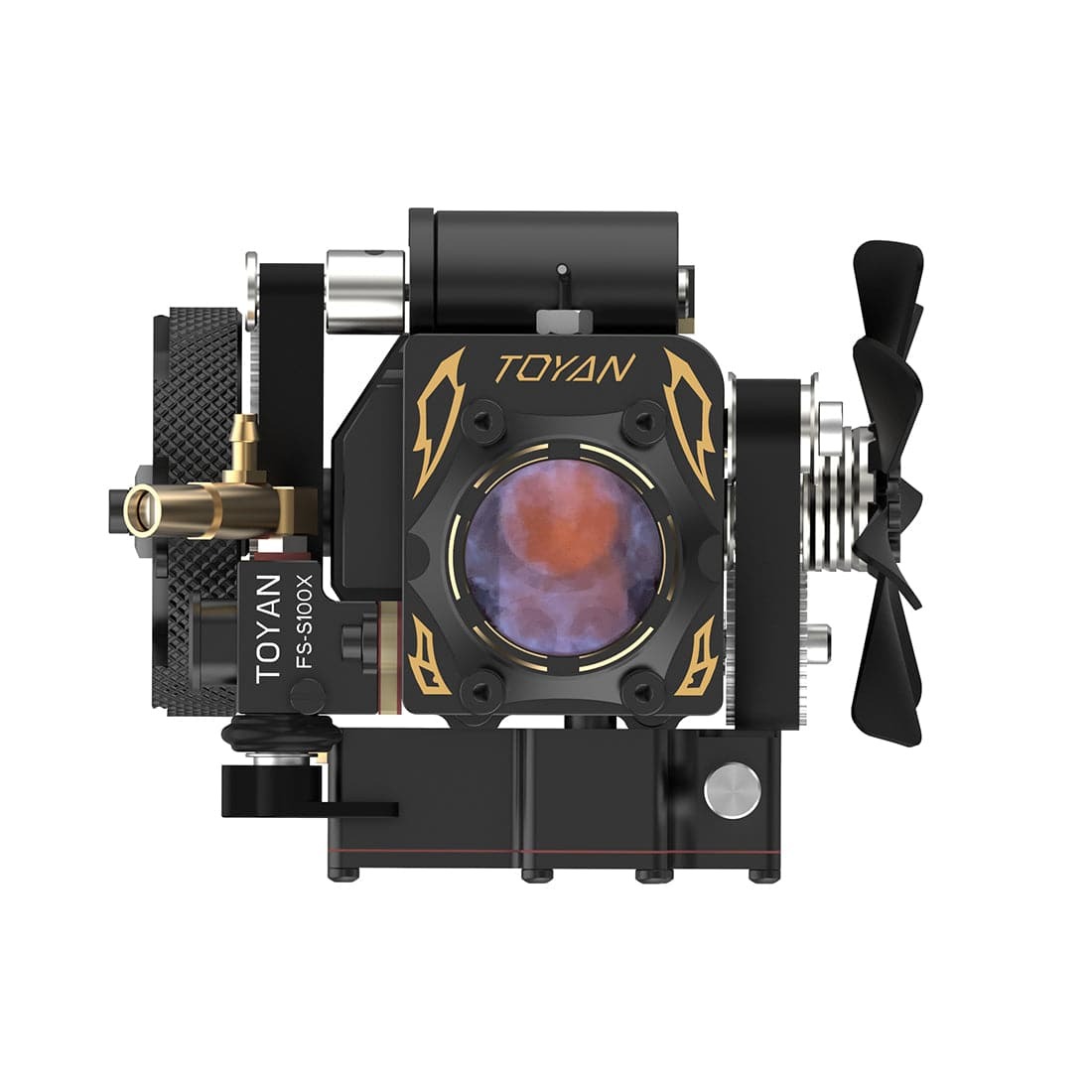

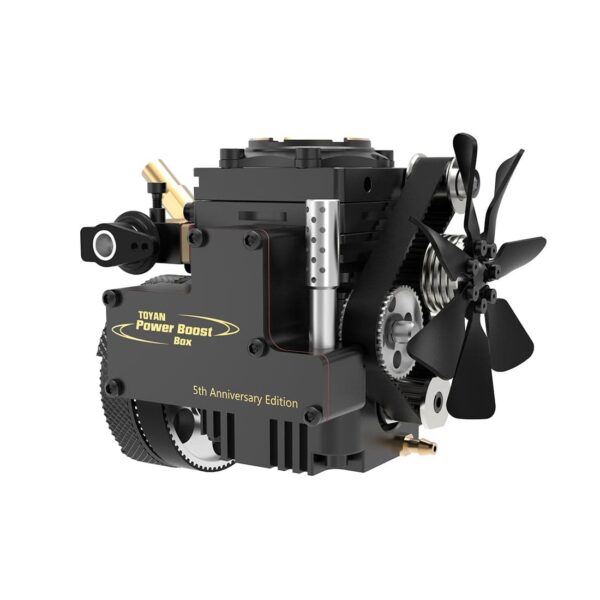

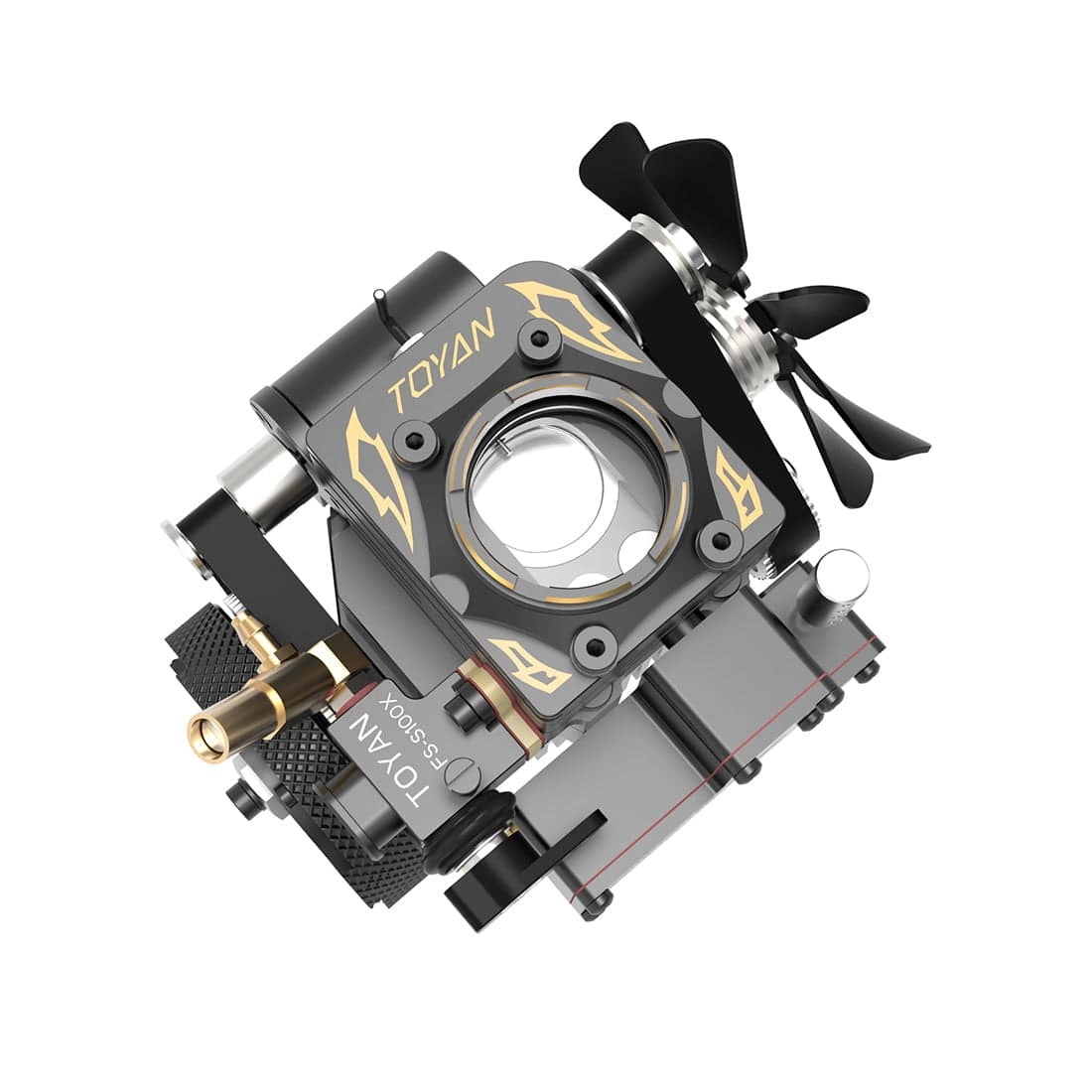

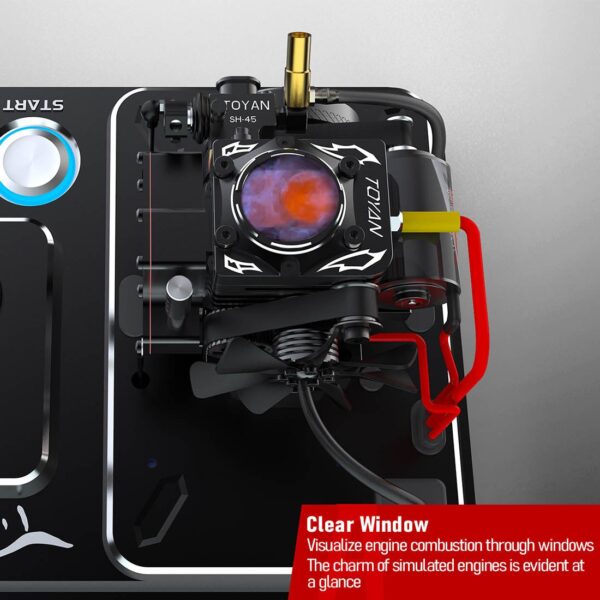

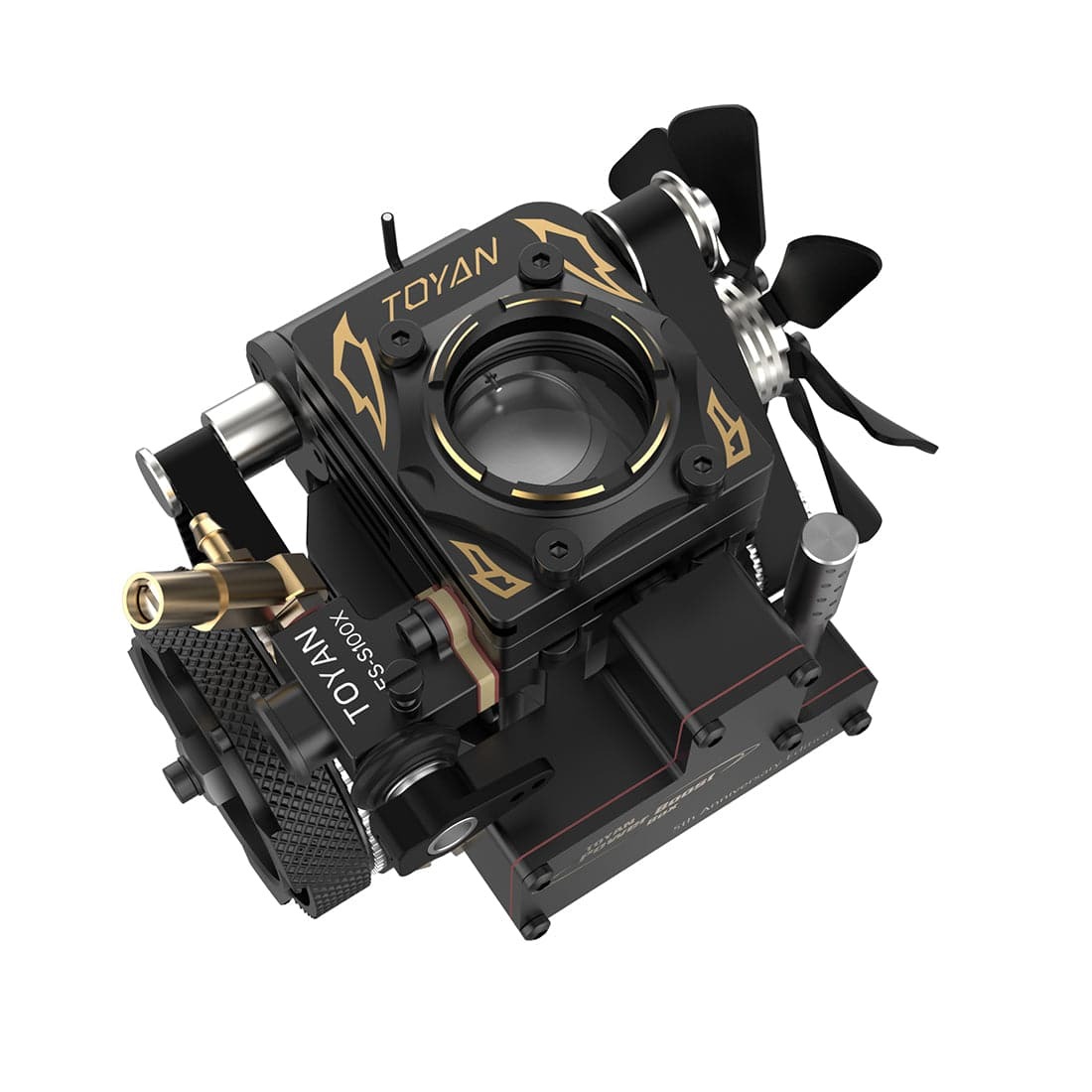

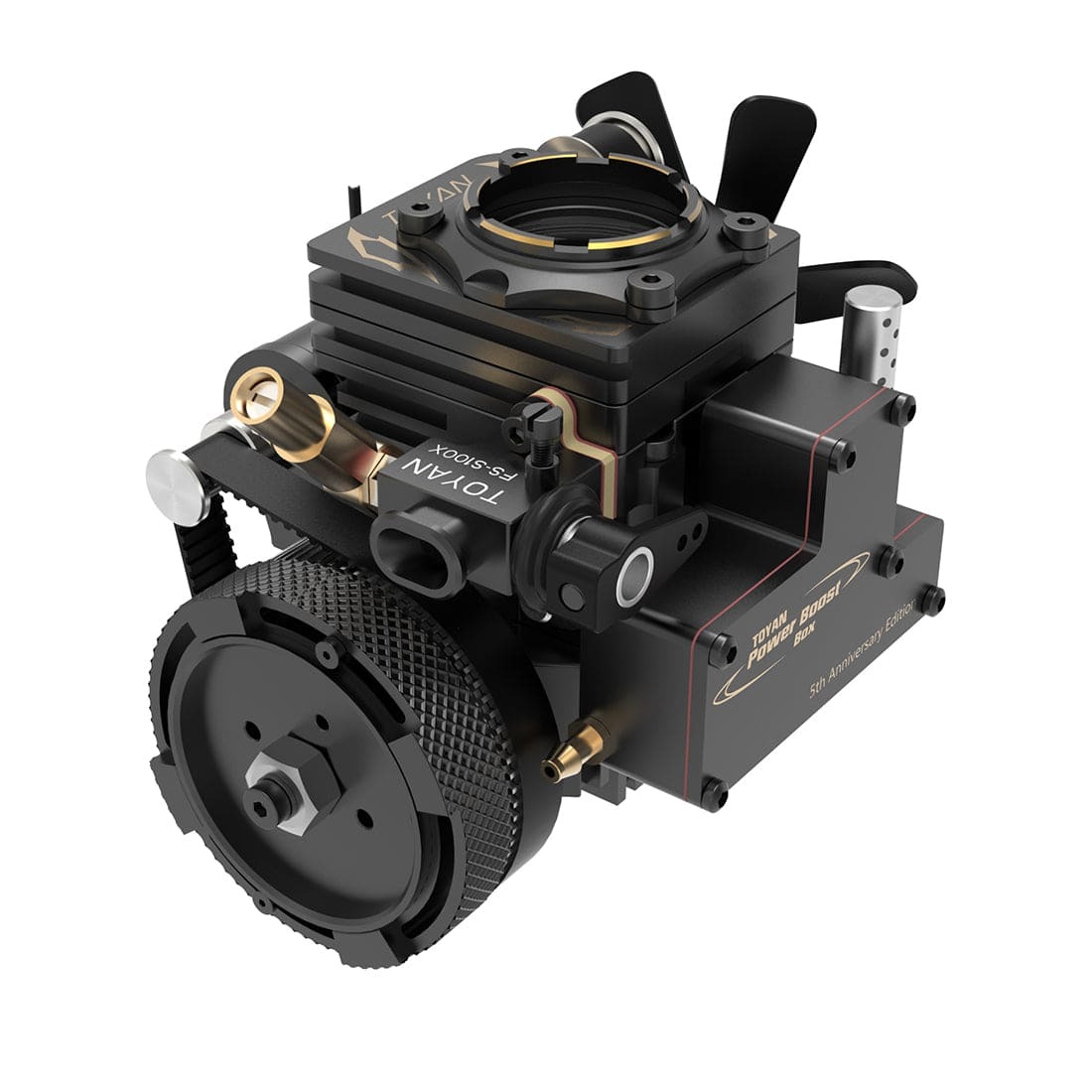

.This product is an engine model specially designed and developed to commemorate the fifth anniversary of TOYAN. Adopts the design of the internal combustion chamber of the observable engine, with the newly designed adjustable carburetor system, adjustable ignition angle flywheel, high-efficiency cooling fan, and the center camshaft design reduces the height of the engine to the extreme, making it extremely compact Four-stroke engine model.

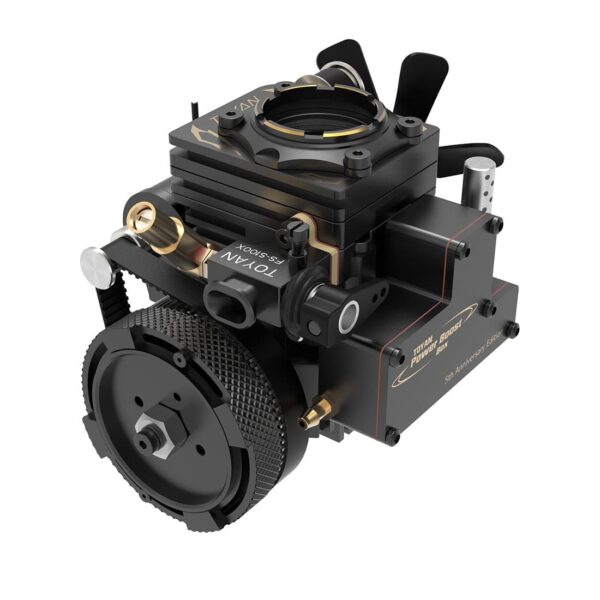

.Micro engine, small “heart”, powerful power; high-precision precision parts provide protection for output power, thermal efficiency, high horsepower, etc.; all-metal body design, aviation aluminum CNC machining alloy steel crankshaft, high-precision piston ring, precision Grinding cylinder liner, alloy valve, high strength timing pulley. More than 200 parts are processed by CNC, with superb craft quality, presenting exquisite and beautiful engine model.

.The mechanical structure is perfectly presented, the clear flywheel and transmission structure are clear at a glance, and the logical and powerful mechanical beauty is displayed; based on the classic invention and design in the history of industrial science and technology, the core principles of machine operation are presented, and the application value of the machine is intuitively displayed.

.While the product has independent functions and structures, it can also be DIY modified for upgrade and combination as a power system.

.Use Method: This engine model needs to be started by CDI ignition. The fuel requires the use of mixed gasoline fuel (#92 and above gasoline and two-stroke 2T engine oil ratio of 25:1) or methanol fuel (20%-25% nitromethane finished product Fuel)

.Note: Please use it with caution during operation. Do not touch the motor fan with your hands to avoid scratching or touching the cylinder to prevent burns.

.This engine model can be used as the engine power of 1:10, 1:12, 1:14 aircraft and ship model. With its unique perspective combustion chamber design, it can also be used in science and education experiments, teaching demonstrations, etc. More practical application scenarios are waiting for you explore and develop in person.
