Toyan FS-S100AC DIY 4 Stroke Methanol RC Engine with Ignition Start Kit

Toyan FS-S100AC DIY 4 Stroke Methanol RC Engine

Unleash the power of the Toyan FS-S100AC with this DIY 4-Stroke Methanol RC Engine Kit. Featuring an ignition start system, this high-performance engine is perfect for RC enthusiasts looking to build and upgrade their cars, boats, and airplanes.

Features:

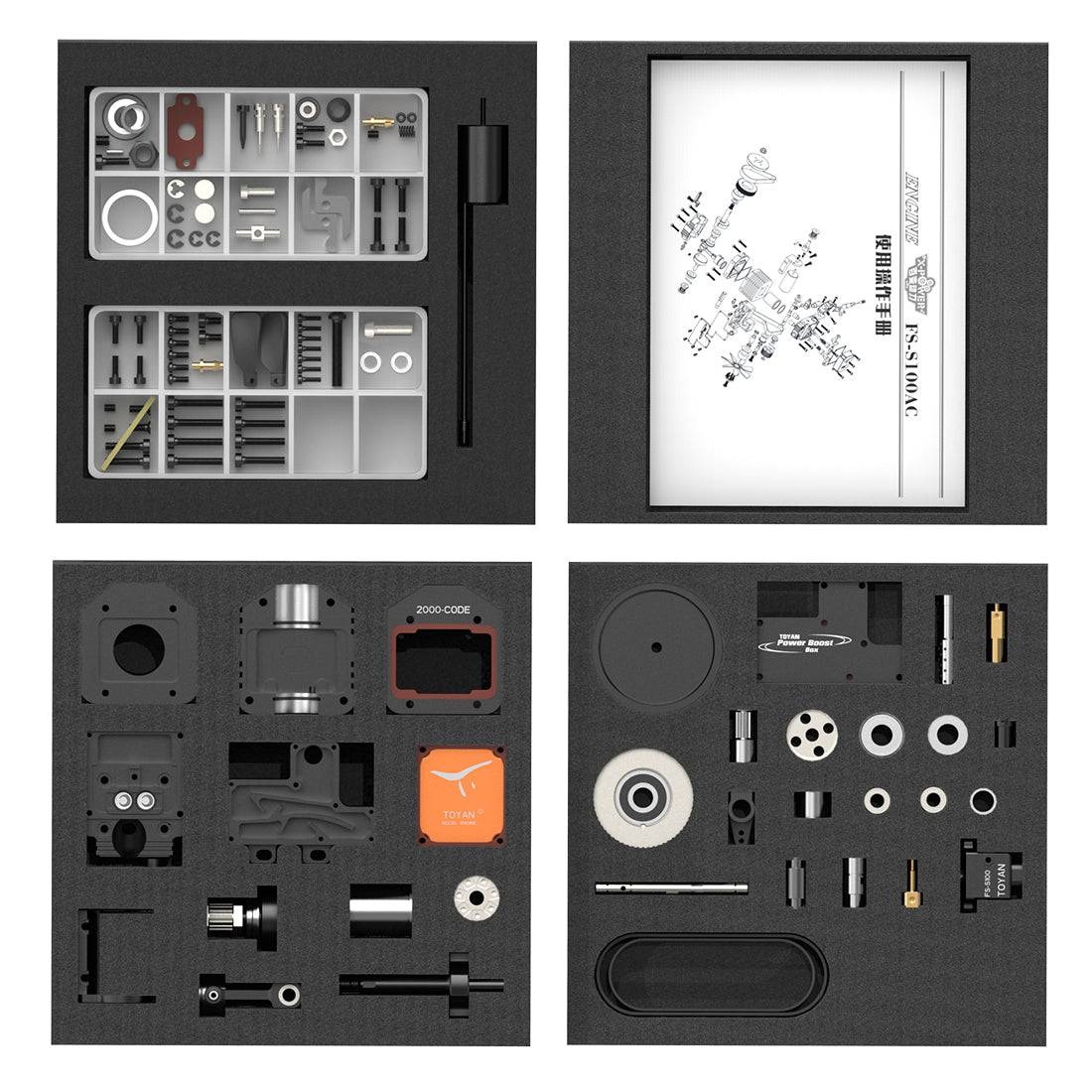

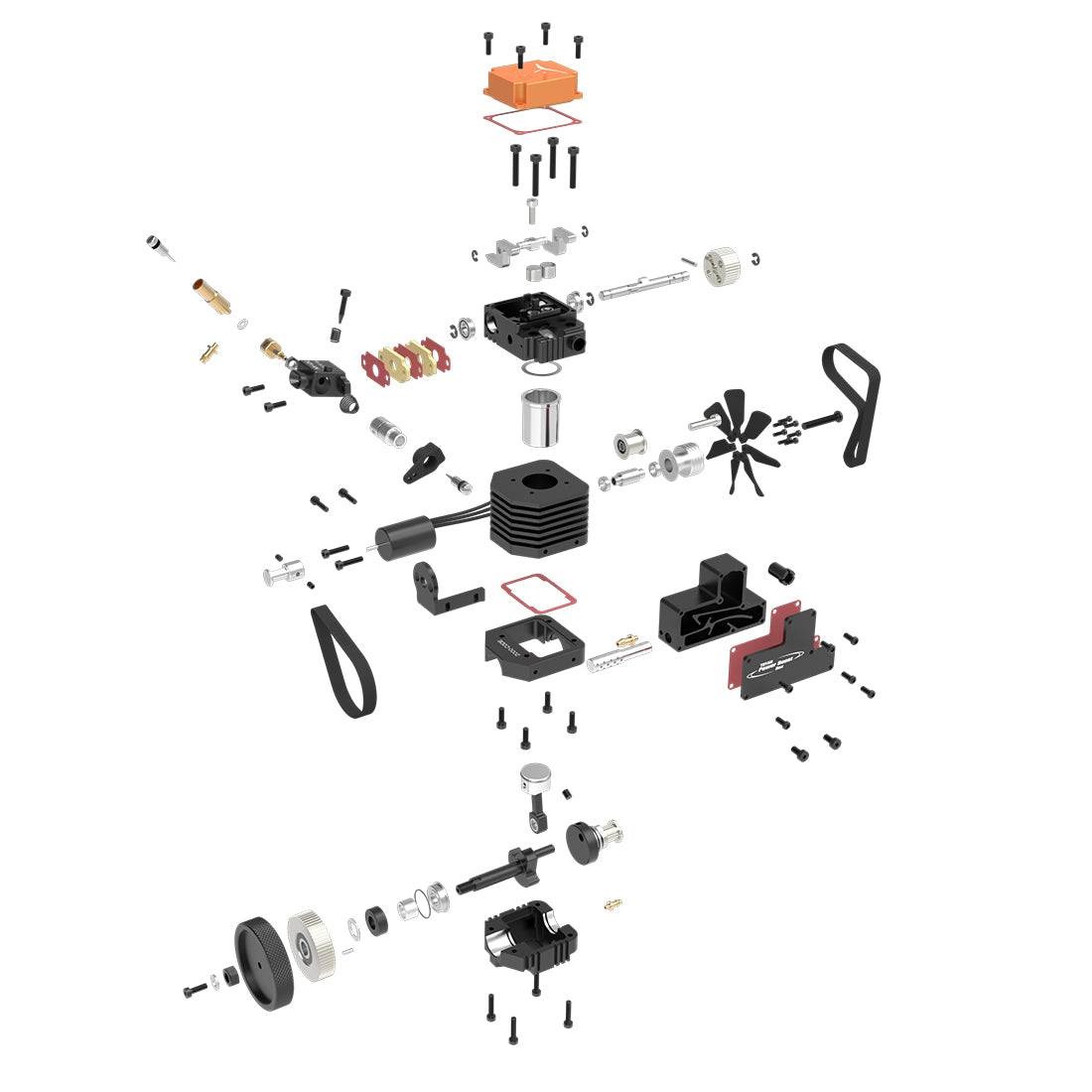

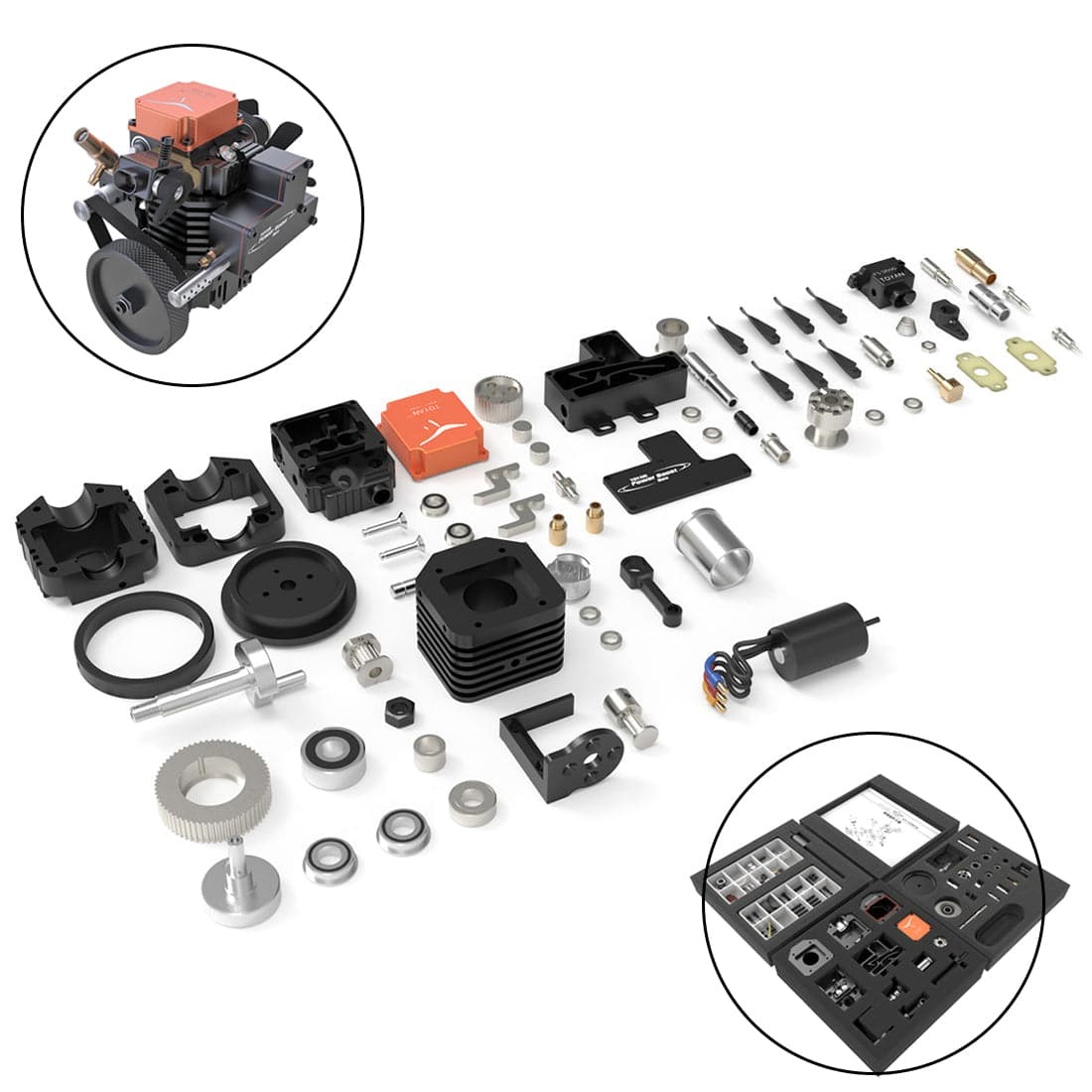

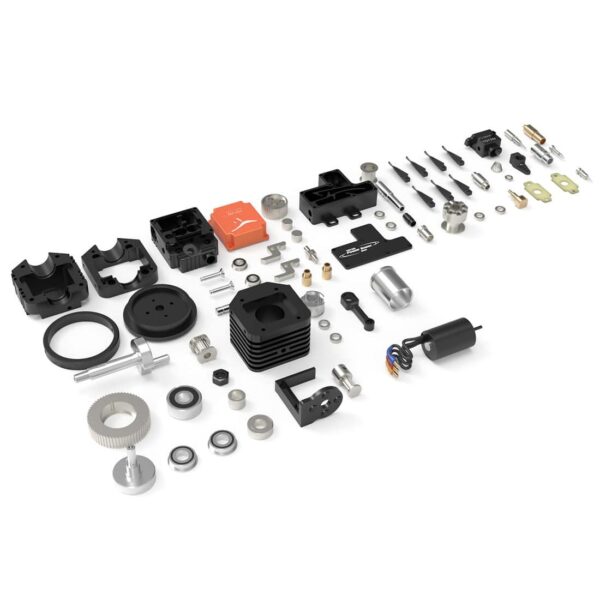

.Build Your Own RC Engine :DIY Version product need to be assembled by yourselvers,Comes with paper instructions. When assembling, you can not only learn a lot about the design and about the engine, but also can improve your hands-on ability

.Small And Powerful:It can work with strong power after assembly.It weights 380g. Small in size and high in horsepower.

.Working Principle: Using methanol as fuel. As the piston moves back and forth in the cylinder, the process of moving from one end of the cylinder to the other is called a stroke. Four-stroke engines are divided into suction stroke, compression stroke, power stroke and exhaust stroke

.Methanol fuel is used: The formula of this fuel is generally: 20% castor oil, 5-30% nitromethane, and the rest is methanol. This product does not have high requirements on methanol fuel, and concentration of 20-25% is acceptable

.Operation: The ignition part is connected to the corresponding spark plug cap and then connected to the voltage regulator module, and finally connected to the 7.4v T-plug battery. The fuel part is the fuel tank connected to the oil pipe and connected to the engine. The starting part: after 11v T-plug battery connects to the ESC and simulator, and start the motor. The starting motor is attached.

These accessories are not included, and all can be bought in our shop. These products are not special products, are general products. Other model engine accessories can also be used for this product. Buy according to the actual situation

.Multiple applications:Suitable to be mounted on 1:10, 1:12, 1:14 scale model car or model ship, model aircraft and other equipment. Can also be used for classroom demonstration, teaching AIDS，

.Note: Please use it carefully during operation. Do not touch the motor fan with your hands to avoid scratch, and do not touch the cylinder with your hands to avoid burns,Suitable for people over 14 years old.

Specifications:

.Color: As Shown
.Material: Plastic + Metal
.Size after Assembly: 100.5 x 85.4 x 86.5mm
.Cylinder Diameter: 17.0mm
.Piston Diameter: 16.6mm
.Displacement: 3.5cc
.Output Power: 0.5ps Horsepower
.Speed: 2500-13500 RPM
.Product Weight: 800g
.Package Dimensions: 18 x 18 x 18cm
.Package Weight: 1000g
.Packing: Graphic Carton

Package Content:

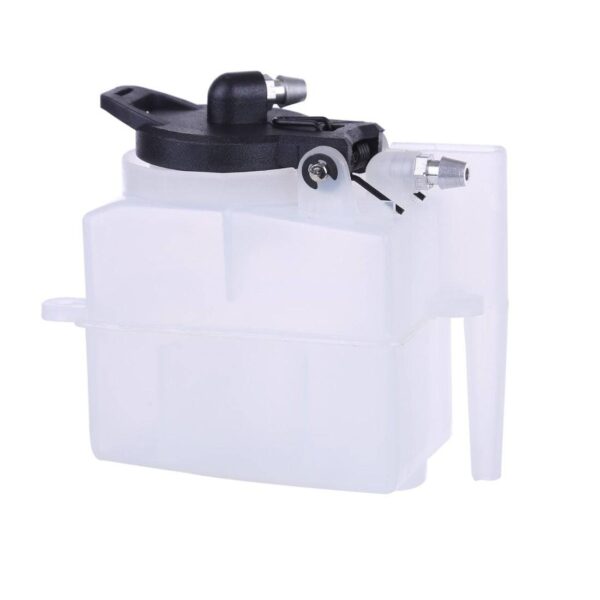

.1 x Oil Tank
.1 x Oil Pipe
.1 x Spark Plug
.1 x Ignition Start Module
.1 x DIY Model Engine
