JCZK 450L DFC 2.4G 6CH 3D Aerobatics RC Helicopter Flybarless Airplane

JCZK 450L DFC 2.4G 6CH 3D Aerobatics RC Helicopter

Master advanced maneuvers with the JCZK 450L DFC 2.4G 6CH 3D Aerobatics RC Helicopter. Perfect for enthusiasts, this model offers precise control, powerful performance, and thrilling 3D aerobatic capabilities.

All-alloy Carbon Fiber Fuselage: New narrow fuselage design, narrow fuselage span, reduce gear damage caused by severe flight deformation and vibration, improved flight performance, enhanced overall power and effectively extended flight time.
.Receiving Integrated Gyroscope: All alloy shell, anodizing process, 3-axis K8 gyroscope, RadioLink R6DSM ten-channel mini SBUS receiver, no complicated wiring

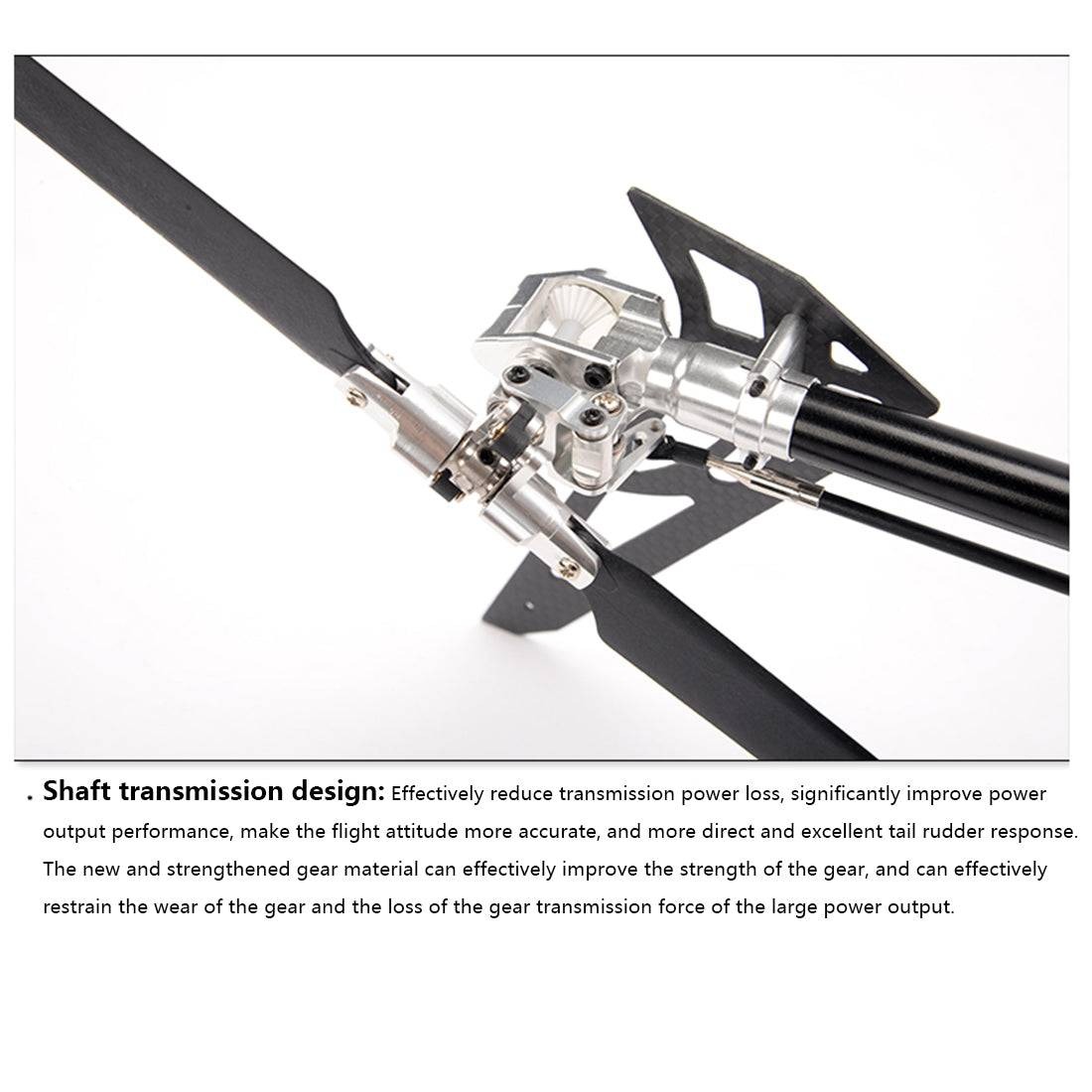

.Shaft Transmission Design: Effectively reduce transmission power loss, significantly improve power output performance, make the flight attitude more accurate, and more direct and excellent tail rudder response.
.The new reinforced gear material can effectively enhance the strength of the gear, and effectively suppress the wear of the gear with large power output and the loss of the gear transmission power.
.Glass Fiber Painted Hood: Hand-painted glass fiber hood, ultra-low wind resistance streamline design, with a new type of shock-absorbing tripod, light weight and impact resistance.
.Aileronless DFC Rotor Head: The helicopter is equipped with a DFC rotor head group, which has a low center of gravity, low drag, and a more direct action response. It has both flexibility and stability, and stronger rigidity, which improves the flight dynamics.
.Fuselage Side Panels: High-strength carbon fiber side panels, added with side panel reinforcement design, effectively improve the fuselage structure and torsion strength, fluorescent green anodizing more highlights the high quality of the helicopter.
.Battery: The new battery board and battery pull button design, matched with the battery slide rail on the side panel, cleverly use the internal space of the body, making the battery installation more convenient and protective.
.Servo Fixing Base: Adopts the CCPM servo direct-push design, all-alloy integrated spindle and servo fixing seat, which makes the installation of the steering gear more convenient and the appearance more beautiful.
.Swashplate Guide Rail: The new all-alloy swashplate guide rail design effectively reduces the friction loss between the swashplate long ball head and the guide plate.
.Tail Rotor Assembly: A new type of tail rotor control group, using two-point fixation, the tail structure is more precise and there is no virtual position, so that the tail rudder performance has a more delicate and precise control feel.
.For Ages: 14+

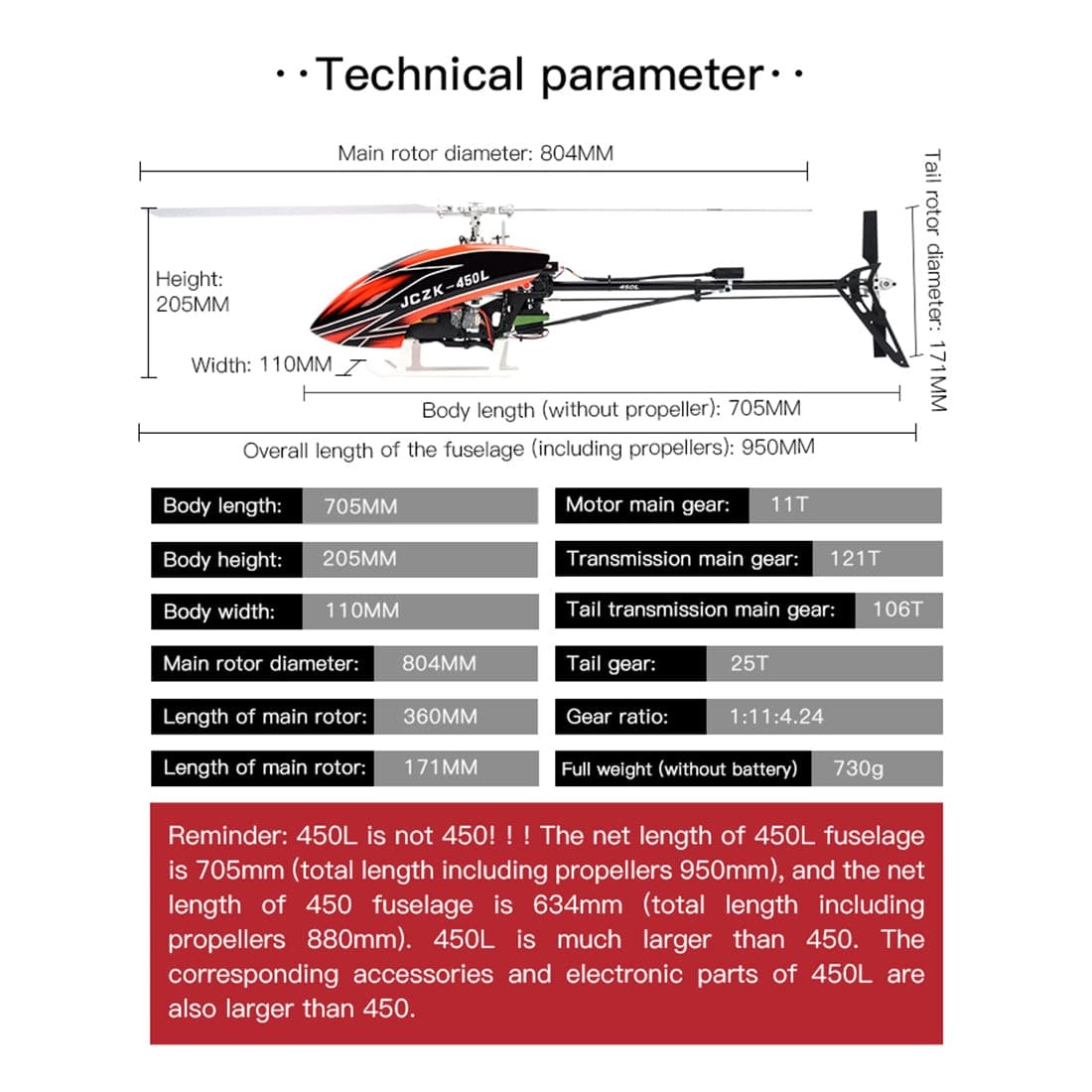

Specifications:

.Color: As Shown
.Material: Alloy + Carbon Fiber
.Fuselage Length(Without propeller): 705mm
.Total Length of the Fuselage (Including Propellers): 950mm
.Main Rotor Diameter: 804mm
.Length of Main Rotor: 360mm
.Tail Rotor Diameter: 171mm
.Motor Main Gear: 11T
.Transmission Main Gear: 121T
.Tail Transmission Main Gear: 106T
.Rear Wing Transmission Gear: 25T
.Gear Ratio: 1:11:4.24
.Full Weight (Without Battery): 730g
.Motor: High-speed brushless motor
.ESC: Recommended 50A brushless ESC
.Servo: Swash plate servox3, tail servox1 is recommended
.Gyroscope: 3-axis gyroscope is recommended
.Radio: RadioLink AT9S 2.4GHz / ten-channel remote control is recommended
.Battery: 11.1V 3000mAh 35C lithium battery is recommended
.Charger: B3 charger is recommended.
.Note: ESC, servo, remote controller receiver, gyroscope, battery, charger are not included
.Product Dimensions: 95 x 11 x 20.5cm
.Product Weight: 730g
.Package Dimensions: 75 x 34.5 x 25.5cm
.Package Weight: 2000g
.Packing: EPP Box

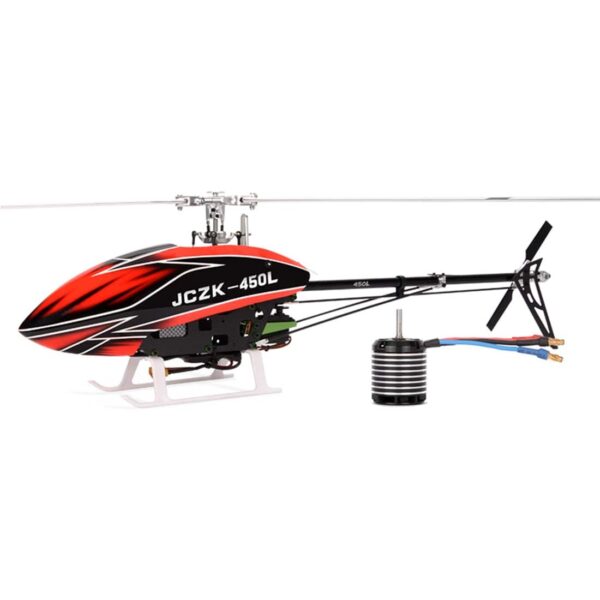

Version 1 Package Content:

.1 x Helicopter
.1 x Motor

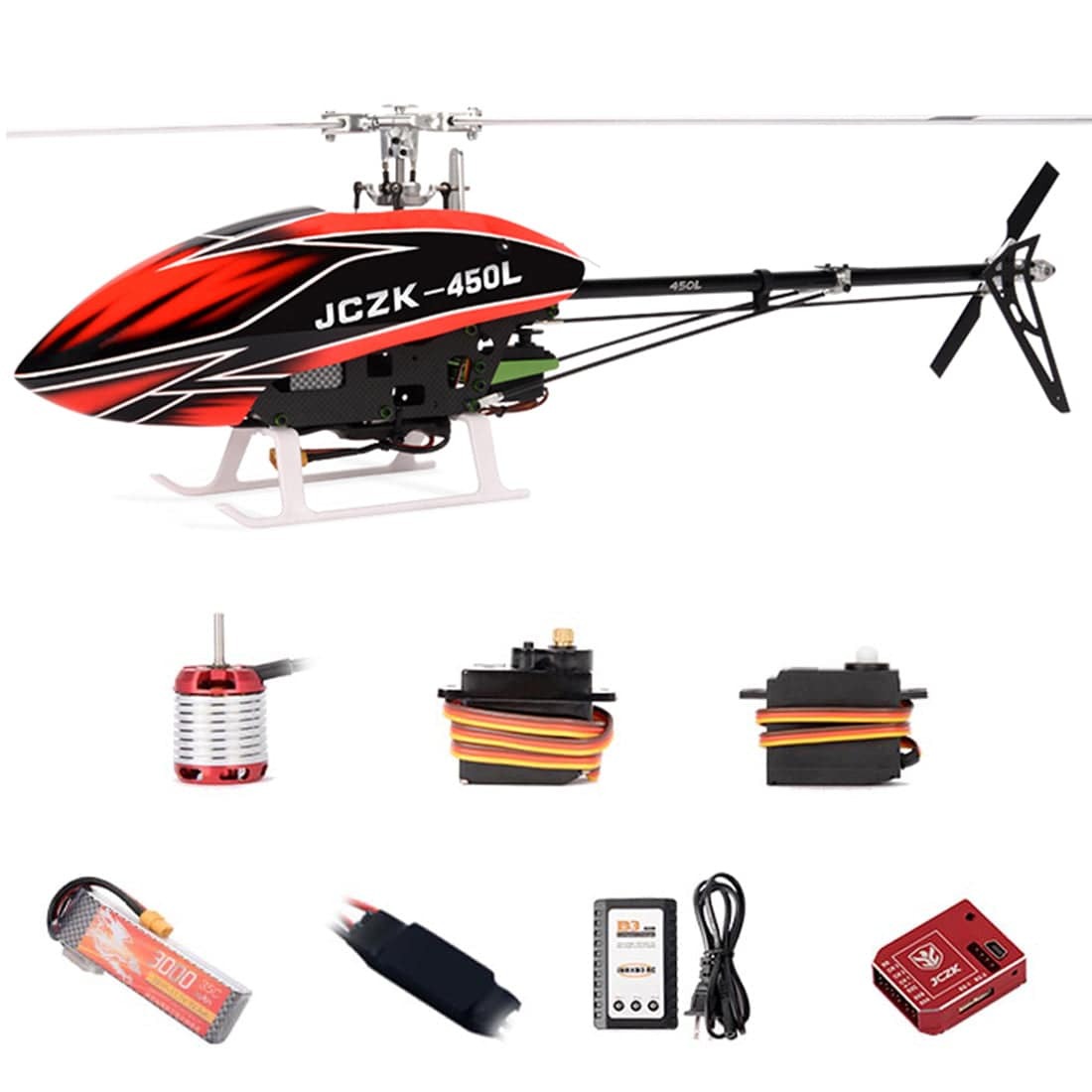

Version 2 Package Content:

.1 x Helicopter
.1 x Motor
.1 x ESC
.3 x Swash Plate Servo
.1 x Tail Servo
.1 x Gyroscope (Without Receiver)
.1 x Battery
.1 x Charger
